Dual Roped Holeless Hydraulic Elevator Packages for Passenger, Service or Freight Applications

The Dual Roped holeless elevator design from MVT eliminates the uncertainty of an in ground cylinder and inconvenience of longer installation times and expense caused by drilling holes. The single stage hydraulic cylinders are completely above ground, where they can be easily inspected and maintained, and where they remain safe from oil leaks and corrosion.

Each MVT Holeless Hydraulic Elevator Package contains:

• Hydraulic cylinders with honed pistons;
• Submersible power unit incorporating a low pulsation screw pump, oversized submersible motor, and a muffler that eliminates the pulsation of pressurized oil for a smoother and quieter ride;

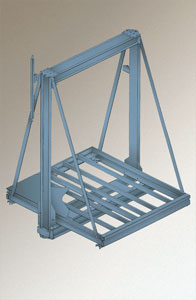

• Car sling package with guide rails, brackets, platform, toeguard, guide shoes, safeties, governor, rupture valves, buffers, limit switches, cam, and all necessary hardware;
• Manual of shop and field installation drawings.

Each component is manufactured to exacting quality standards, and rigorously inspected at MVT before shipment.

The Dual Roped design is well suited for large and medium sized freight and passenger elevators. It is a cost effective alternative to a dual telescopic cylinder design where higher travels are specified. Standard configurations for passenger, service and freight applications are described on the following pages.
